Product Features:
1,Stable electronic operation
2,long life span
3,Higher efficiency
4,Lower temperature
5,High quality components:
IC brand ON SEMI(orginal USA) MOSFET brand TOSHIBA (Original JAPAN
Product Description

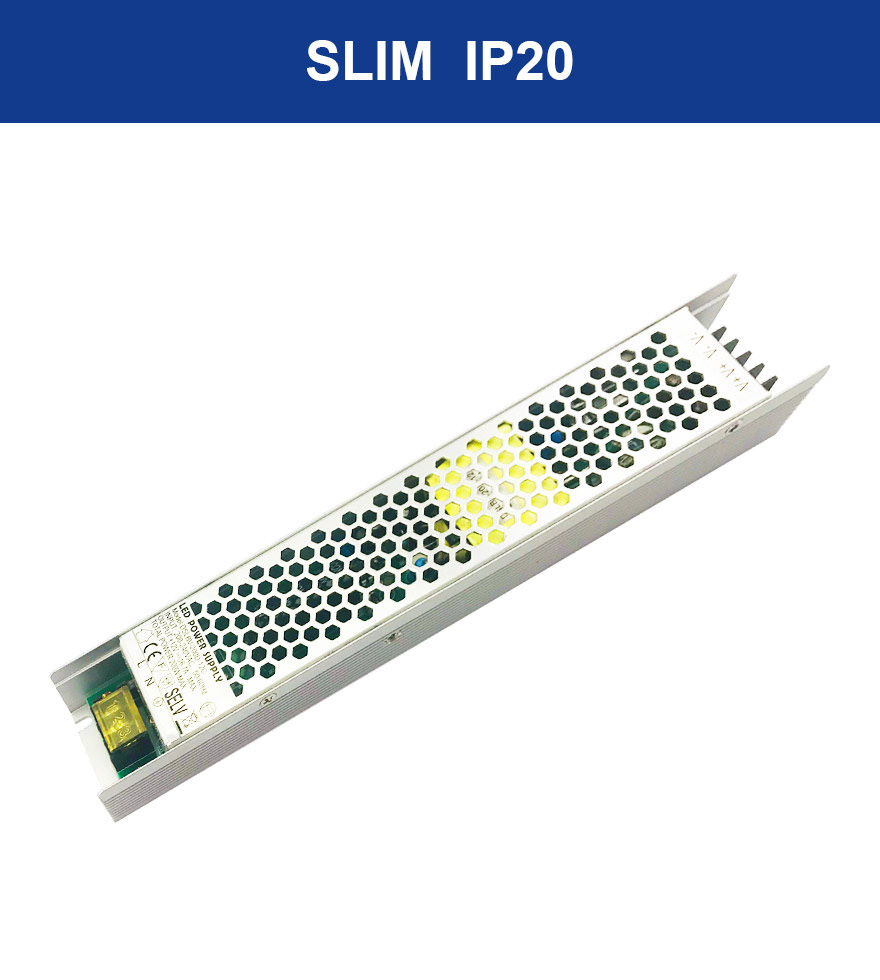

| MODEL | LBV-60D- 12/24C | LBV-100D- 12/24C | LBV-150D- 12/24C | LBV-200D- 12/24C | LBV-250D- 12/24C | LBV-300D- 12/24C | |
| DIMENSION (L*W*H) mm | 139*46.5*30 | 182*46.5*30 | 219*46.5*30 | 252*46.5*30 | 329*46.6*30 | 329*46.6*30 | |
| PF | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 | |
| IP Grade | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | |
| OUTPUT 输出 | DC VOLTAGE | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| 输出电压 | |||||||
| RATE POWER | 60 W | 100 W | 150 W | 200 W | 250 W | 300 W | |
| 额定功率 | |||||||
| CURRENT (max) | 5.00 A(12V) | 8.33 A(12V) | 12.50 A(12V) | 16.66 A(12V) | 20.83 A(12V) | 25.00 A(12V) | |
| 最大输出电流 | 2.50 A(24V) | 4.16 A(24V) | 6.25 A(24V) | 8.33 A(24V) | 10.41 A(24V) | 12.50 A(24V) | |
| RIPPLE & NOISE(max） | ≤200MV | ≤200MV | ≤200MV | ≤200MV | ≤200MV | ≤200MV | |
| 纹波与噪声 | |||||||
| INPUT 输入 | VOLTAGE RANGE | 180 -264 V | 180 -264 V | 180 -264 V | 180 -264 V | 180 -264 V | 180 -264 V |
| 输入电压范围 | |||||||
| EFFICIENCY(Typ.) | 85% | 87% | 87% | 87% | 87% | 87% | |
| 电源效率（典型值） | |||||||
| INRUSH CURRENT(Typ） | COLD START 冷启动 <60A/230VAC | ||||||
| 浪涌电流 | |||||||
| LEAKAGE CURRENT | <2mA 230VAC | ||||||
| 漏电流 | |||||||
| PROTECTION 保护功能 | OVERLOAD | 110-150% rated output power.额定输出功率的110-150% | |||||
| 过载保护 | Protection type:Hiccup mode recover automatically,打嗝模式,自恢复 | ||||||
| SHORT CIRCUIT | When the output of positive and negative poles are short-circuited, the power supply is automatically locked 输出正负极短路时，电源自动锁死 | ||||||
| 短路保护 | |||||||
| OVER VOLTAGE | 13.8-16.2V (12V) / 27.6-32.4V (24V) | ||||||
| 过压保护 | Protection type:Shut down o/p voltage，关断输出电压，重启恢复 | ||||||
| OVER TEMPRETURE | Protection type:Shut down o/p voltage，关断输出电压，重启恢复 | ||||||
| 过温度保护 | |||||||
| ENVIRONMENT 环境 | WORKING TEMP | -30～+60℃ | |||||
| 工作温度 | |||||||
| WORKING HUMIDITY | 20-80% RH non-condensing 无冷凝 | ||||||
| 工作湿度 | |||||||
| STORAGE TEMP&HUMIDITY | 10-90% RH non-condensing 无冷凝，-40～+85℃ | ||||||
| 储存温度及湿度 | |||||||
| VIBRATION | 10-500Hz,2G 10min/1cycle,period for 60min.each along X,Y,Z axes | ||||||
| 振动 | 10-500Hz,2G 10分钟/周期 X,Y,Z 轴各60分钟 | ||||||
| OVER VOLTAGE CATEGORY | III,Compliance to EN61558,EN50178,EN60664-1,EN62477-1 | ||||||
| 过电压等级 | |||||||
| SAFETY & EMC 安规及电磁兼容性 | SAFETY STANDARD | Compliance to EN60950-1,EN60335-1,EN61558-1/-2-16 | |||||
| 安规标准 | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC | ||||||
| 耐压指标 | |||||||
| EMC EMISSION | Compliance to EN55015,Class B,EN55014,EN61000-3-2,-3 | ||||||
| 电磁兼容辐射 | |||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2) | ||||||
| 电磁兼容抗扰度 | |||||||
